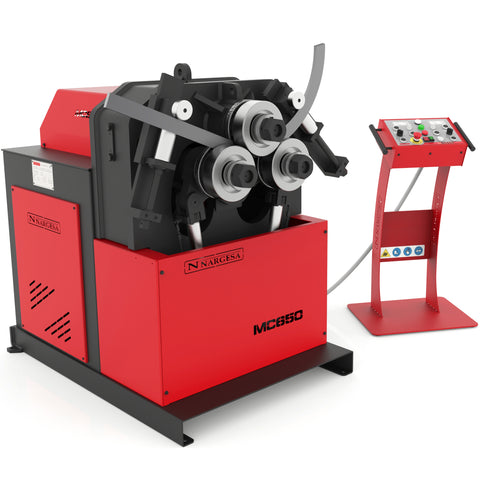

MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)
MC650: Roll Bender (Bend up to 4" O.D. Round Tube)

MC650: Roll Bender (Bend up to 4" O.D. Round Tube)

Regular price $32,930 Sale price $27,440
/


WATCH THE VIDEO TO SEE EXACTLY HOW THE NARGESA MC650 ROLL BENDER WORKS ALONG WITH SOME OF IT’S FEATURES

The NARGESA MC650 Section and pipe bending Roll Bender. Our pipe bender MC650 is designed to minimize the manufacturing cost and provide maximum performance when bending pipes and profiles. It has been manufactured for different profiles such as flat bar or bar section, T-profile, rolling U-profile, bending angle, bending solid rod, both square and round types, spiral tube or even to perform square, rectangular or round pipe in different materials: iron, carbon steel, stainless steel, brass, copper, aluminum. The purpose of these bending operations varies from making greenhouses, tables, chairs, car guards, doors, windows, railings, fences up to countless metal products.

All Nargesa products are manufactured in our facilities in Spain. Hydraulic and electrical components are completely standard and from the the best leading European trademarks which have technical support all around the world: Rexroth, Bosch, Roquet, Schneider Electric, LG, Telemecanique, Pizzato etc...

THE MC650 BENDING CAPACITIES



  • Round Tube: 4" x .120" with a Minimum Radius of 30" Inches
  • Square Tube: 2.75" x 2.75" x .15" with a Minimum Radius of 30" Inches
  • Angle (Leg-Out): 2.75" with a Minimum Radius of 24" Inches
  • Flat Bar (Easy Way): 4" x 1" with a Minimum Radius of 15" Inches
  • Flat Bar (Hard Way): 4" x 0.75" with a Minimum Radius of 50" Inches
  • Solid Round: 2" with a Minimum Radius of 13" Inches
  • Solid Square: 1.75" x 1.75" with a Minimum Radius of 12" Inches
  • C-Channel (Easy Way): 4.7" with a Minimum Radius of 24" Inches
  • C-Channel (Hard Way): 4.7" with a Minimum Radius of 24" Inches
  • T-Channel (Easy Way): 2.75" x 2.75" with a Minimum Radius of 16" Inches

THE MC650
BENDING CAPACITIES


  • Round Tube: 4" x .120"
    with a Minimum Radius of 30" Inches
  • Square Tube: 2.75" x 2.75" x .15"
    with a Minimum Radius of 30" Inches
  • Angle (Leg-Out): 2.75"
    with a Minimum Radius of 24" Inches
  • Flat Bar (Easy Way): 4" x 1"
    with a Minimum Radius of 15" Inches
  • Flat Bar (Hard Way): 4" x 0.75"
    with a Minimum Radius of 50" Inches
  • Solid Round: 2"
    with a Minimum Radius of 13" Inches
  • Solid Square: 1.75" x 1.75"
    with a Minimum Radius of 12" Inches
  • C-Channel (Easy Way): 4.7"
    with a Minimum Radius of 24" Inches
  • C-Channel (Hard Way): 4.7"
    with a Minimum Radius of 24" Inches
  • T-Channel (Easy Way): 2.75" x 2.75"
    with a Minimum Radius of 16" Inches
*Please Note - Minimum Radii shown may require multi-pass. The sizes shown above are the maximum capacity with minimum radii. Round Profiles and Special Profiles shown above will require dedicated tooling. When bending smaller sections, the machine will be able to bend very small radii.*




STANDARD TOOLING CONFIGURATION:

The Nargesa MC650 Roll Bender is equipped with 9 standard pieces, by means of which the user can work all kinds of profiles. Square, Rectangular Tube, Square Bars, C-Channel, T-Channel, Angle, Flat Bar, and Edged Flat Bar. Adjustable rollers, by washers with the size of profile which allows us to make bending to different profile sizes.

When the user has to bend any kind of profile at radius wider than 2 m or if there are height problems in the facilities, it is really uncomfortable to work vertically. It will be enough with just bending the machine down so the bending operation is made horizontally with the help of a support or stands where we place the piece in order to obtain an acceptable job. For instance, when you need to bend arches for a greenhouse.


TECHNICAL SPECS AND FEATURES



  • Rollers Speed: 5 RPM
  • Diameter of Axes (Lower): 2.5" / 65mm
  • Diameter of Axes (Upper): 3.15" / 80mm
  • Useful Axes Length: 6.3" / 160mm
  • Motor Power: 3 KW / 4 CV - 1,400 R.P.M.
  • Dimensions: 51"L x 39"W x 51"H
  • Approx. Machine Weight: 2,760 lbs.
  • Millimeter scale for bending in the upper shaft.
  • Maximum Capacity for Bending Round Tube: 4" inches or 101mm
  • Two working positions, horizontal and vertical in the same workbench.
  • Two drive rollers. The two lower rollers are motorized and knurled for better grip.
  • Manufacturer's Warranty: 3 Years on All Parts (Fulfilled by Quantum Machinery Group.)
  • Lower bench palletized to easily transport the machine to the workplace or store it in case of lacking space.
  • Correction rollers on the sides to control the bending deformation when making spirals and spiral staircases.
  • Bending regulation by the upper shaft, which allows to curve tube and profile dimensions and profiles of large diameter without deformation.
  • Secure transmission by using flat hardened pinions.
  • Base cupboard for rollers and accessories.

TECHNICAL SPECS
AND FEATURES




  • Rollers Speed: 5 RPM
  • Diameter of Axes (Lower): 2.5" / 65mm
  • Diameter of Axes (Upper): 3.15" / 80mm
  • Useful Axes Length: 6.3" / 160mm
  • Motor Power: 3 KW / 4 CV - 1,400 R.P.M.
  • Dimensions: 51"L x 39"W x 51"H
  • Approx. Machine Weight: 2,760 lbs.
  • Millimeter scale for bending in the upper shaft.
  • Max. Capacity for Bending Round Tube: 4" inches or 101mm
  • Two working positions, horizontal and vertical in the same workbench.
  • Two drive rollers. The two lower rollers are motorized and knurled for better grip.
  • Manufacturer's Warranty: 3 Years on All Parts (Fulfilled by Quantum Machinery Group.)
  • Lower bench palletized to easily transport the machine to the workplace or store it in case of lacking space.
  • Correction rollers on the sides to control the bending deformation when making spirals and spiral staircases.
  • Bending regulation by the upper shaft, which allows to curve tube and profile dimensions and profiles of large diameter without deformation.
  • Secure transmission by using flat hardened pinions.
  • Base cupboard for rollers and accessories.


TWO WORKING POSITIONS:

The MC650 Nargesa Section and Tube & Pipe bending machine has been designed to work in either vertical or horizontal position without needing to fit any extra accessories. Its structure enables it to be laid down to work in the horizontal position - ideal for large diameter work or installations with height limitations.
