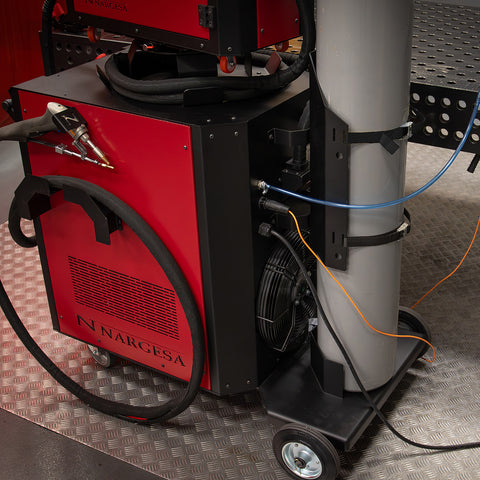

Most laser welding machines on the market do not include built-in supports for gas cylinders such as argon or nitrogen. This omission not only makes transporting the equipment more difficult but also poses a significant safety risk to the operator. Without proper securing, cylinders can easily tip over—even when the machine is stationary—creating hazardous situations in the work environment. Having a solution that ensures the stability and mobility of the entire system is essential for safe, efficient, and professional operation.

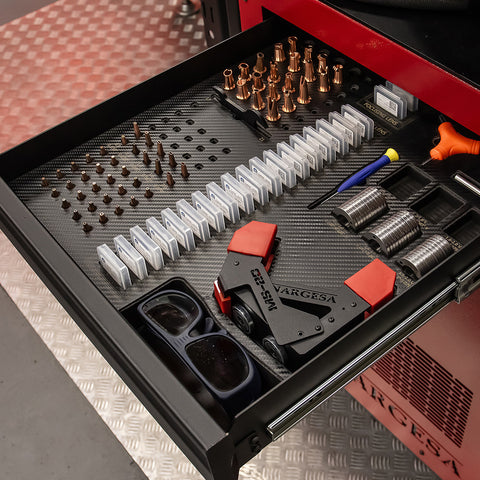

The machine features a built-in drawer within the chassis, specifically designed to store consumables, tools, and accessories in a clean, safe, and organized manner. This solution allows the operator to keep everything within easy reach, avoiding unnecessary movement and improving day-to-day work efficiency. Every detail has been carefully considered to deliver a practical, professional, and fully self-sufficient user experience.

The advantages of having this technology in a machine are countless, but we’ll highlight the most important ones. With the customer’s consent, the manufacturer can remotely connect to the machine to perform software updates completely free of charge and detect potential issues without needing to be on-site. It also notifies the user when preventive maintenance is due—among many other advanced features.

Ensures consistent performance even during long hours of intensive work. This system is especially critical in automatic or robotic mode, where continuous operation and thermal stability are essential. A reliable cooling system not only extends the lifespan of the components but also ensures more precise, uninterrupted welding—ultimately optimizing process efficiency.

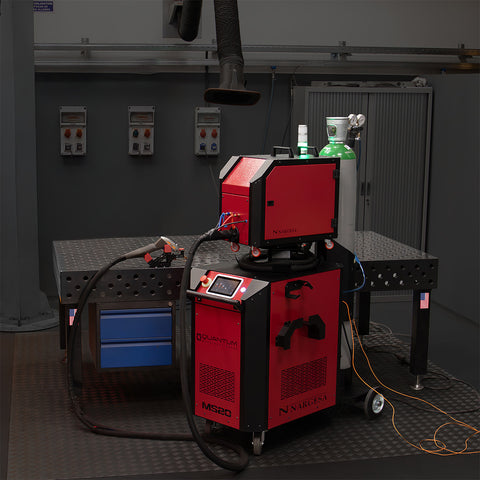

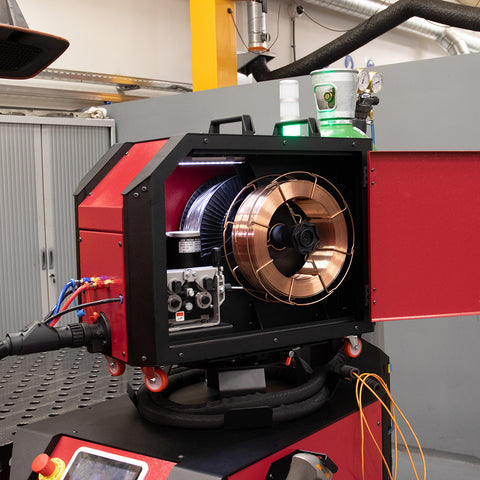

The MS20 laser welding machine is equipped with an advanced dual-rotation drive system featuring four motorized rollers, engineered to deliver precise and consistent wire feeding—especially critical in demanding applications such as aluminum and stainless steel welding. Unlike many machines on the market that only motorize the lower rollers, the MS20 includes eight motorized rollers in total, ensuring uniform, slip-free wire delivery even with challenging materials.This model supports two 15 kg wire spools with wire diameters up to 2 mm (0.079”), and allows users to work with two different types or sizes of wire (e.g., stainless steel and carbon steel) without the need for mechanical adjustments. This eliminates downtime for setup changes and enables instant wire switching, dramatically increasing productivity.

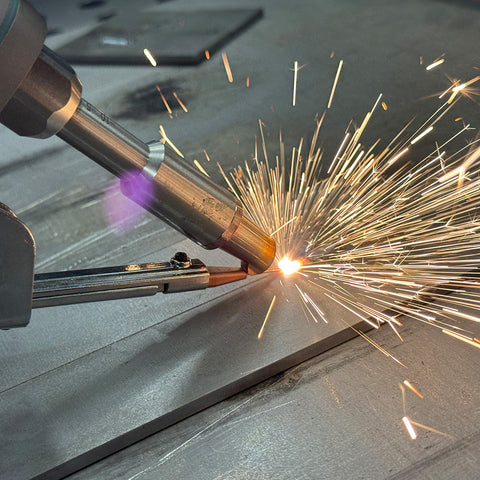

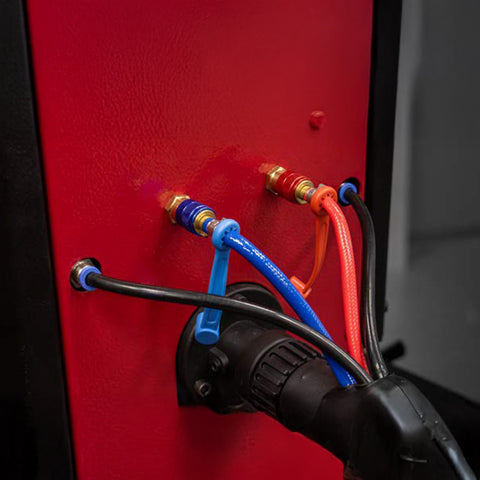

Our welding torch is designed to deliver maximum comfort, precision, and durability in high-demand environments. It features an ergonomic grip that compactly integrates the fiber optic cable, cooling hoses, and dual wire feeds—all connected through a flexible spring that enhances freedom of movement and comfort during extended use. Unlike other solutions on the market, all conduits and components are fully protected, ensuring long-lasting performance and safety.

Storage capacity for up to 10,000 programs
Measurement units configurable in inches or millimeters
Powerful database for welding, cleaning, and cutting
Preloaded material library with the ability to add new entries
Welding and material library
Cleaning and material library
Cutting and material library
Dynamic temperature control for the Protective Lens
Dynamic temperature control for the Focus Lens
Dynamic temperature control for the Torch Motor

Programming available in over 20 languages
Industry 4.0-ready
On-screen alarm diagnostics
Preventive maintenance notifications
Remote connectivity option for manufacturer support

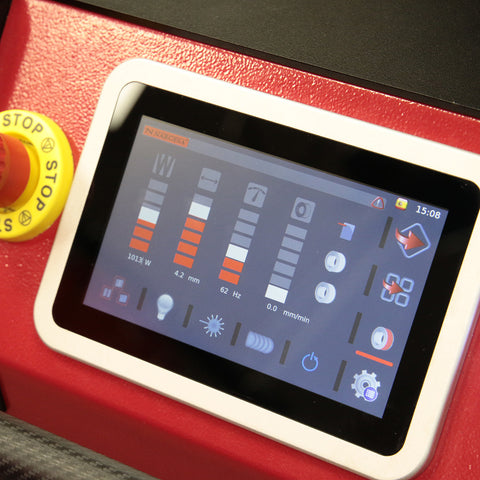

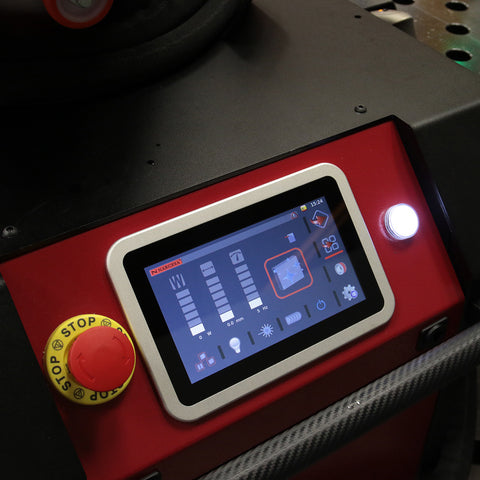

7” touchscreen display resolution: 800x480
128MB silicon disk
2 analog inputs, 12-bit resolution
16 digital inputs (24 VDC)
16 digital outputs (24 VDC, max 0.7 A), protected against overload and short-circuit
1 RS232 serial port
1 CAN port with 9-pin Sub-D female connector
1 USB port

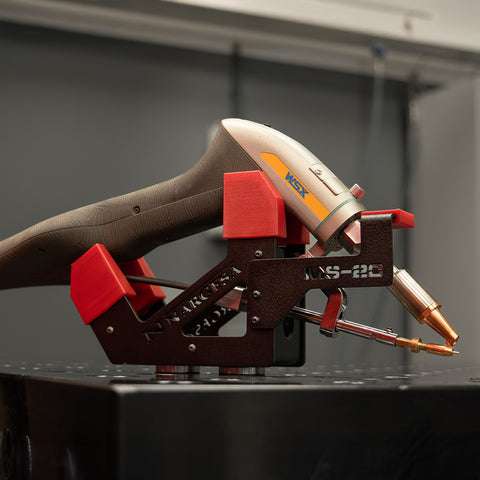

Magnetic torch holder for table mounting
Certified protective glasses
Accessory and tool drawer with individual compartments
Star knob
Allen keys: 2mm, 2.5mm, and 3mm
3 nozzles for welding without wire feed
3 nozzles for single wire feed
5 single wire feed contact tips: 0.8mm, 1mm, 1.2mm, 1.6mm, 2mm / 0.030”, 0.035”, 0.045”, 0.063”, 0.079”
3 nozzles for double wire feed
5 double wire feed contact tips: 0.8mm, 1mm, 1.2mm, 1.6mm, 2mm / 0.030”, 0.035”, 0.045”, 0.063”, 0.079”
1 cutting nozzle
1 cutting tip
1 cleaning nozzle
10 protective lenses
1 focus lens

4 V-groove wire feed rollers for 0.8mm and 1mm wire / 0.030”, 0.035”
4 V-groove wire feed rollers for 1.2mm and 1.6mm wire / 0.045”, 0.063”
4 V-groove wire feed rollers for 1.6mm and 2mm wire / 0.063”, 0.079”
4 U-groove aluminum wire rollers for 0.8mm and 1mm wire / 0.030”, 0.035”
4 U-groove aluminum wire rollers for 1.2mm and 1.6mm wire / 0.045”, 0.063”
4 U-groove aluminum wire rollers for 1.6mm and 2mm wire / 0.063”, 0.079”
2 wire liners – fully compatible with standard MIG welding machines
1 laser centering tape
